Future Systems: Enzo Ferrari Museum, modena, italy

'enzo ferrari museum' by jan kaplicky and andrea morgante, modena, italy
image © studio centro

in 2004 future systems won an international competition to design a new museum in modena, italy. dedicated to motor racing legend and entrepreneur enzo ferrari (1898 – 1988), the museum comprises exhibition spaces within the early nineteenth century house where the motor racing giant was born and raised, and its adjoining workshop, as well as a separate, newly constructed exhibition building.
following the death of jan kaplicky in 2009, the office of future systems was dissolved. andrea morgante, former associate director of future systems and now director of shiro studio, was appointed to oversee the museum's completion. the new building has been constructed according to kaplický's original design. it is sensitive to the existing historical context,
combining the latest in construction and energy saving technology, while resonating in visual language and materials with the cars it is intended to showcase. the fully restored house and workshop provide additional exhibition space designed by morgante.

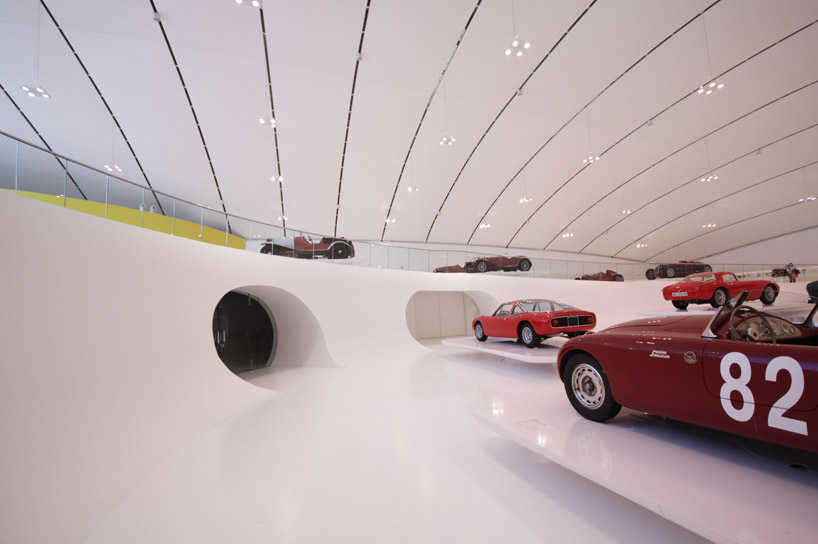

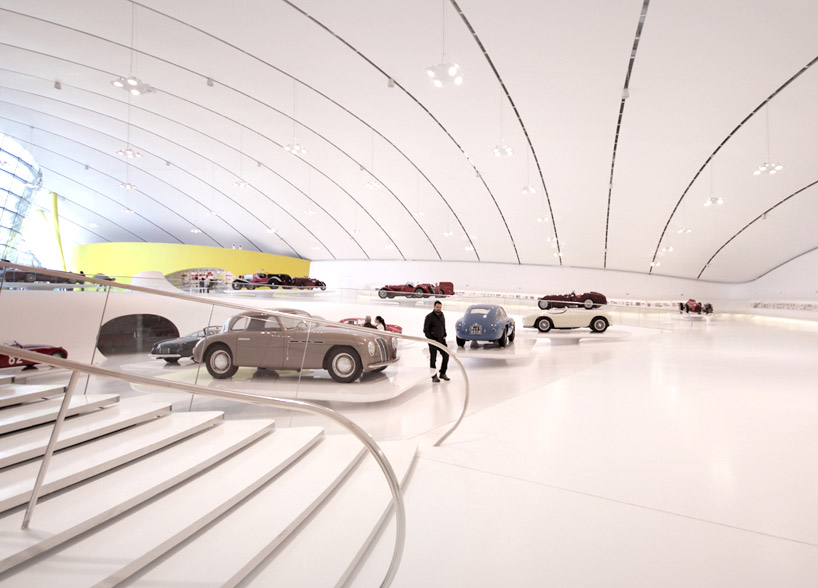

interior view of the museum
image © studio centro

kaplický wanted to create a dialogue between the two exhibition buildings that showed consideration for ferrari’s early home
and underscored the importance of the museum as a unified complex made up of several elements.

the sculpted yellow aluminium roof with its ten incisions, intentionally analogous to those air intake vents on the bonnet of a car,
allows for natural ventilation and day lighting, while taking into consideration the aesthetic values of car design.
with its 3,300 square metres of double-curved aluminium, the roof is the first application of the material where it is applied in such a large scale.
together with boat builders whose familiarity with organic sculpted forms and waterproofing made them the ideal partner, and cladding specialists,
the form is constructed from aluminium sheets fitted together using a patented tongue and groove system.
the bright modena yellow of the roof is ferrari’s corporate colour, as seen on the company's insignia where it forms the backdrop to the prancing horse.
it is also the official colour of modena.

visitors entering the new building have uninterrupted views into the entire exhibition space: a large, open, white room, where the walls and floor transition
lightly into one another and are perceived as a single surface. a stretched semi-transparent membrane spreads light evenly across the roof,
recalling the language of a car interior. a bookshop and café are situated to one side of the entrance and facilities to the other,
each painted the same modena yellow as the. a gently sloping ramp gradually leads the visitor around the building from the ground floor to the basement level,
with display stands designed by morgante found along the circulation path. up to twenty-one cars can be displayed in this open space at any one time.

stairway and roof detailing reflects the visual language of the car
image © andrea morgante

the glass façade is curved in plan and tilts at an angle of 12.5 degrees. each pane is supported by pre-tensioned steel cables and is able to withstand 40 tonnes of pressure. the technical specification of these panes and cables means that greater transparency in the façade is achieved with maximum functionality. in the summer months a thermo-sensor activates the windows in the façade and roof allowing cool air to circulate.
with 50% of the internal volume of the main exhibition building set below ground level, geothermal energy is used to heat and cool the building making this the first museum building in italy to use geothermal energy. the building also employs photovoltaic technology and water recycling systems.
the height of the new exhibition building reaches a maximum of 12 metres, the same height as the house.

the floor gradually tranfers into the wall
image © andrea morgante

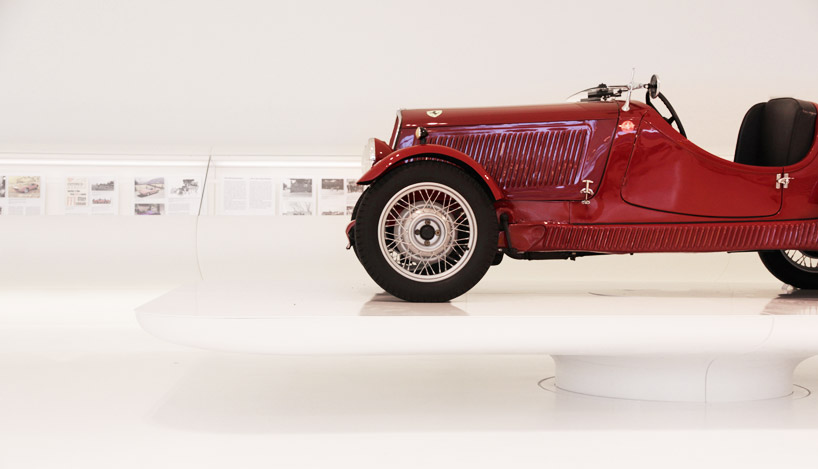

the display area raises the cars off the floor
image © andrea morgante

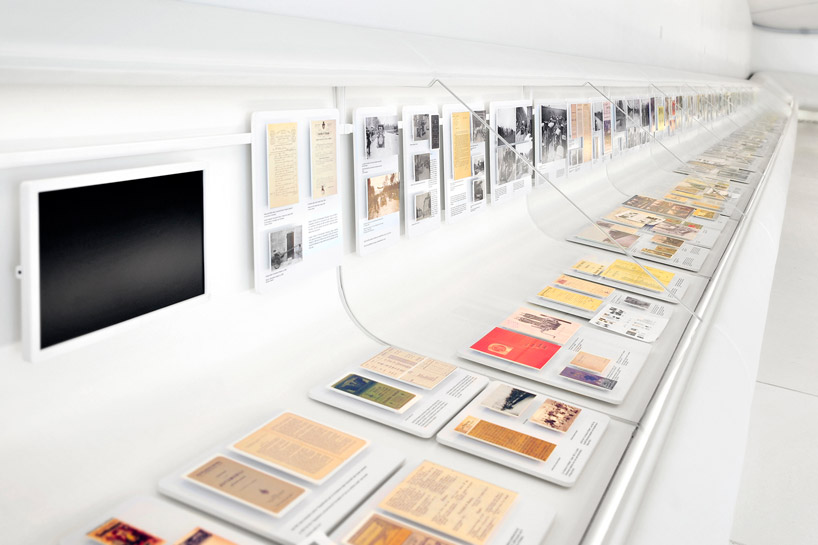

dispay unit
image © studio centro

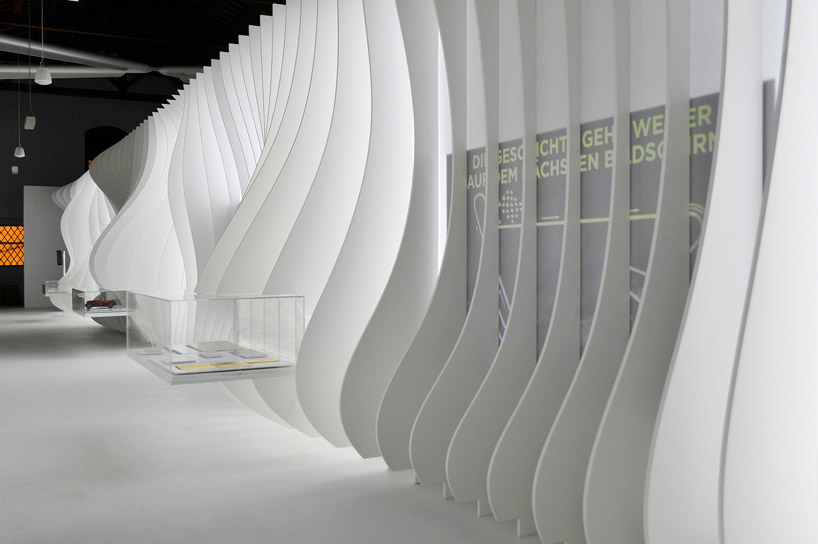

large scale vertical book
image © studio centro

the two-storey house and workshop built by ferrari’s father in the 1830s has been completely refurbished. later additions to the house
and workshop have been removed and, with the exception of two internal bracing structures that have been inserted in accordance
with italian anti-seismic regulations to give structural rigidity, no alterations have been made.

the main gallery space is located within what was the double height workshop. here morgante has designed a contemporary exhibition display system,
which incorporates digital projections, objects owned by ferrari, information panels and other material. the display system was conceived
as a large-scale vertical book that allows the visitor to read the different chapters of ferrari’s life through various media; a three-dimensional immersive biography.
the system takes the form of a sinuous wall separated into pages, so that as visitors progress down the room, they are able to gradually discover each page
and chapter in sequence. this organic landscape stretches through the entire length of the 40 metre long space and soft,
low-level backlighting gently illuminates both it and the room.

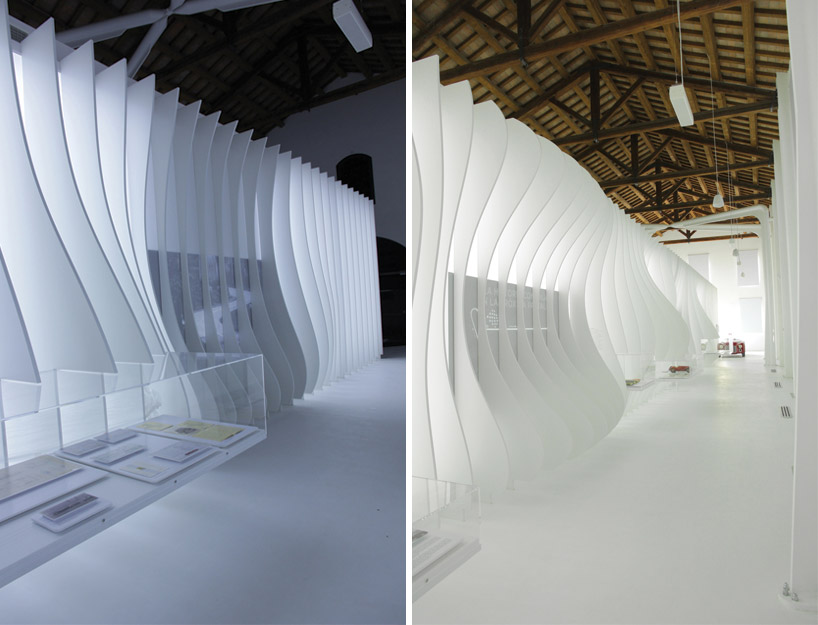

view of display area with different lighting conditions
images © andrea morgante

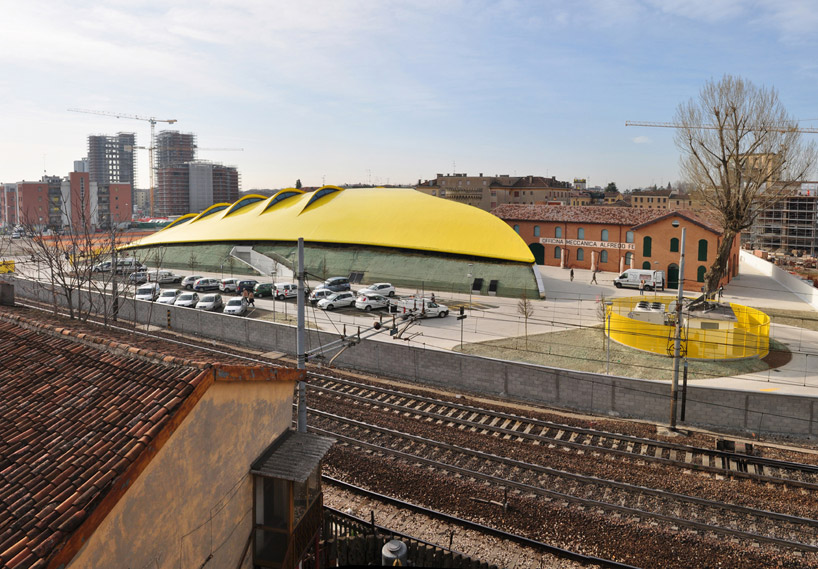

exterior view of the museum
image © david pasek

restored house
image © david pasek

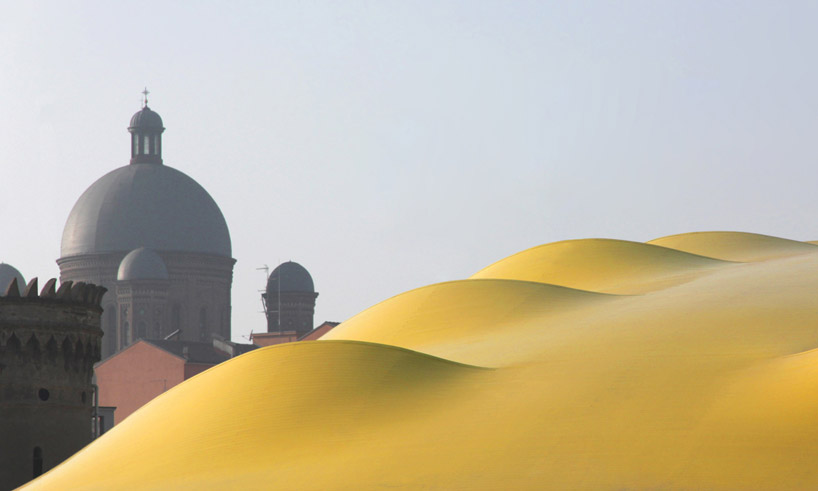

detail of roof
image © andrea morgante

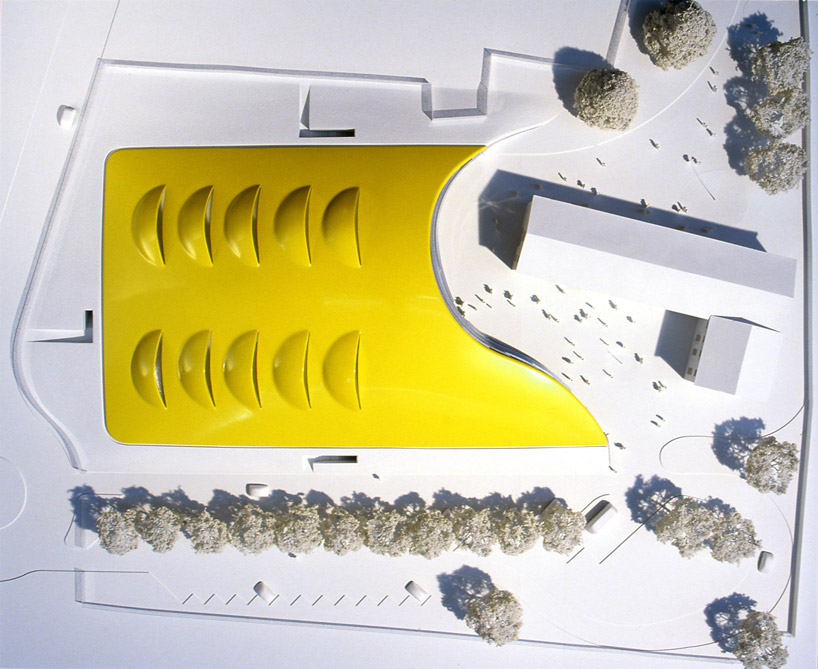

model of building

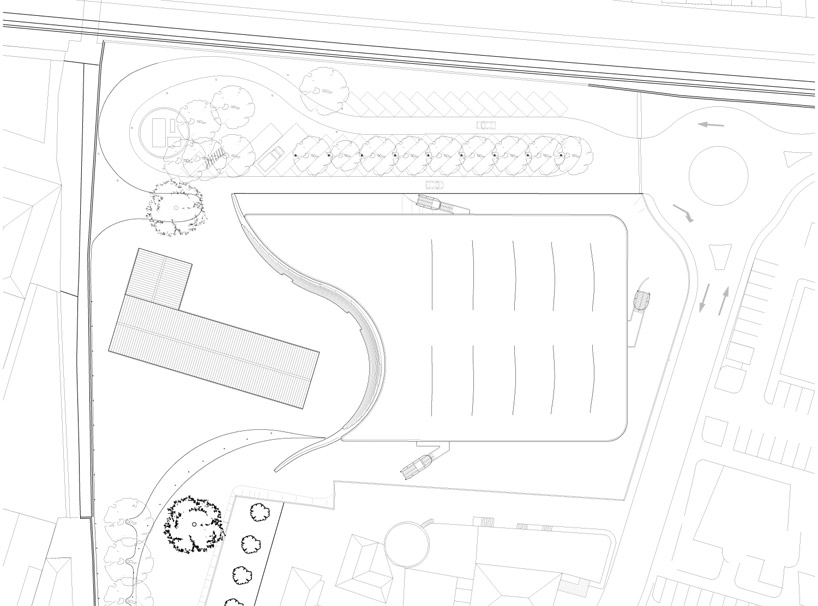

site plan

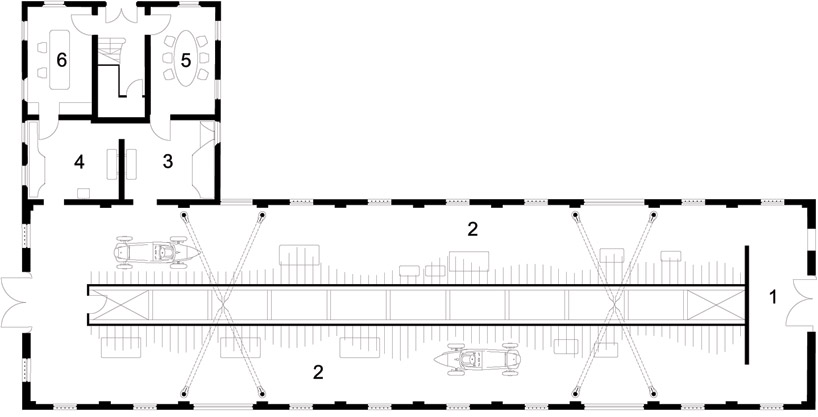

house floor plan / level 0
1 - main entrance
2 - exhibition space
3 - exhibition room
4 - exhibition room
5 - meeting room
6 - office

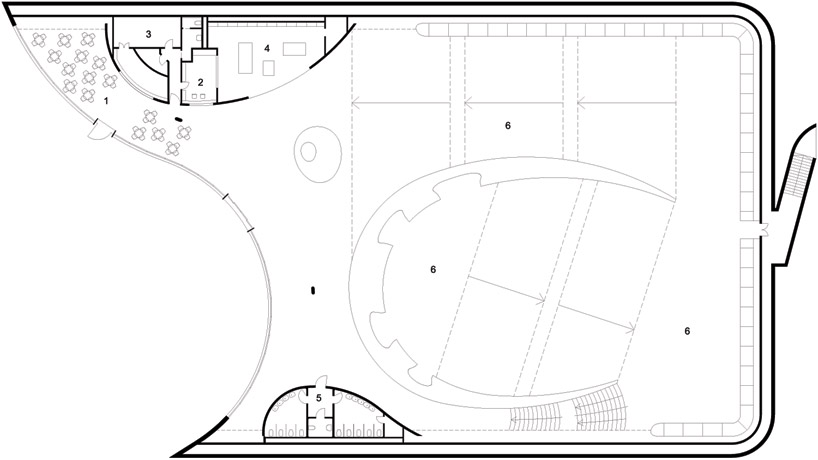

gallery floor plan / level 0
1 - cafeteria
2 - ticket desk
3 - kitchen
4 - bookshop
5 - washrooms
6 - exhibition area

gallery floor plan / level 1

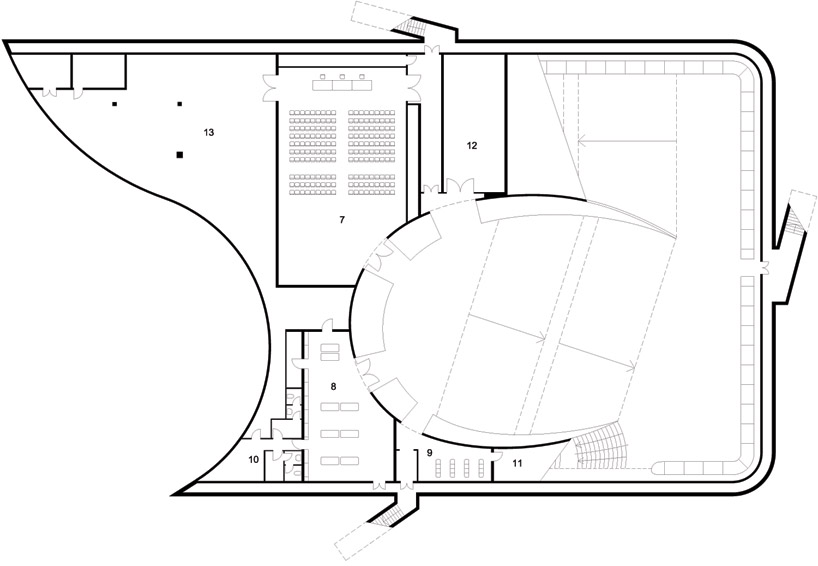

gallery floor plan / level -1
7 - conference room
8 - didactic room
9 - video installation room
10 - staff room
11 - technical room
12 - storage
13 - plant room

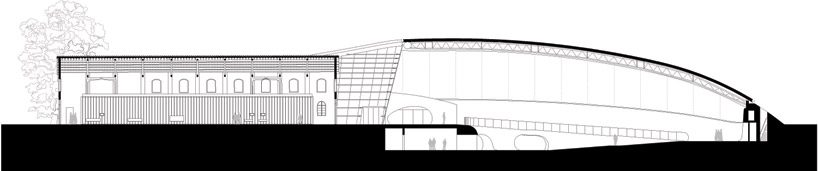

gallery and house long section

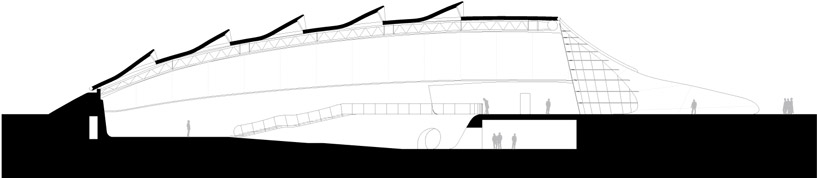

gallery long section

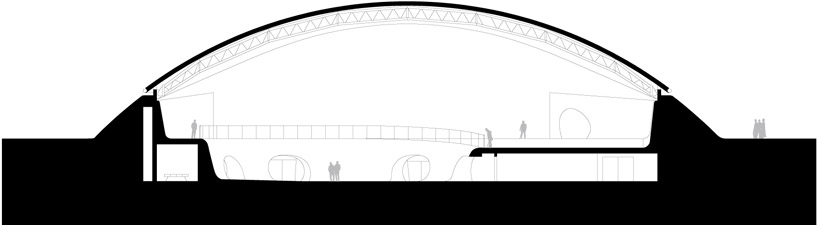

gallery cross section

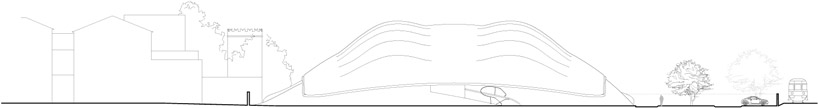

north elevation

west elevaton
